1.Glass Cutting
Glass cutting is the first and basic glass processing throughout the production process. The success of subsequent grinding or drilling processes depends on its proper performance.
2.CNC grinding
It is to use the grinding wheel groove of the fine engraving machine to grind the edge of the rough glass and remove the residual quantity; to chamfer and drill the glass raw material through the drilling head, and use the fine grinding wheel to finish the shape and camera holes to meet the requirements. The machining precision reaches 0.01mm.
3.Cleaning
Afterthe cutting process, the glass panels move to the Cleaning line for thorough cleaning to remove any dirt.dust or residues. The cleaning line typically inculde the following stages Washing: The glass panels are subjected to a series of washing stages, which may involve the use of water, detergent, and brushes to clean the surfaces.
4.Glass Tempering
The process is by controlled thermal or chemical treatments to increase its strength compared with normal glass. Tempering puts the outer surfaces into compression and the interior into tension. Such stresses cause the glass, when broken, to shatter into small granular chunks instead of splintering into jagged shards as ordinary annealed glass does. The granular chunks are less likely to cause injury.
5.Glass Coating
The multilayer coating process uses physical vapour deposition (PVD) technology to uniformly cover the surface of the glass with multiple layers of film, thereby achieving the purpose of enhancing its optical properties. Magnetron Sputtering is a kind of PVD, with the advantages of simple equipment, the coating lines can easy to control, large coating area and strong adhesion.
6.Glass Silk Screen Printing
Silkscreened glass printing is a cost-effective means to create custom patterns or images on glass. It is produced by printing a layer of ceramic frit through a specialized screen mesh onto a glass substrate and then sending the printed glass through our state-of-the-art tempering furnaces for permanent and durable material fusion.

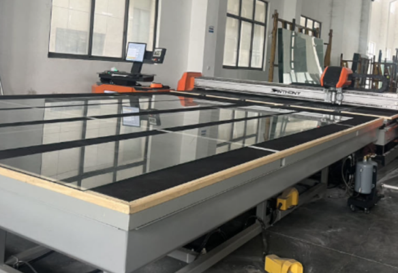

Auto Cutting Machines
Quantity: 4 Sets
Tolerance :± 0.15mm
Cutting thick：0.4-6.0mm
Maximum Size : 2440* 1830mm
Quantity: 22 sets
Tolerance :± 0.02mm
Single Axis Line：13 sets
Double Axis Line : 8 Sets
Maximum Size : 1220* 2200mm

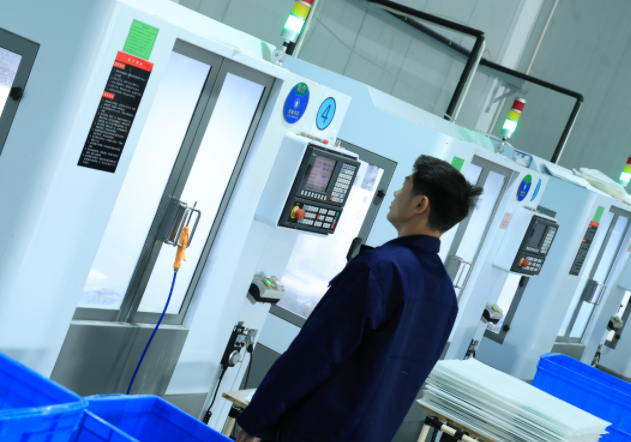

CNC grinding Machines

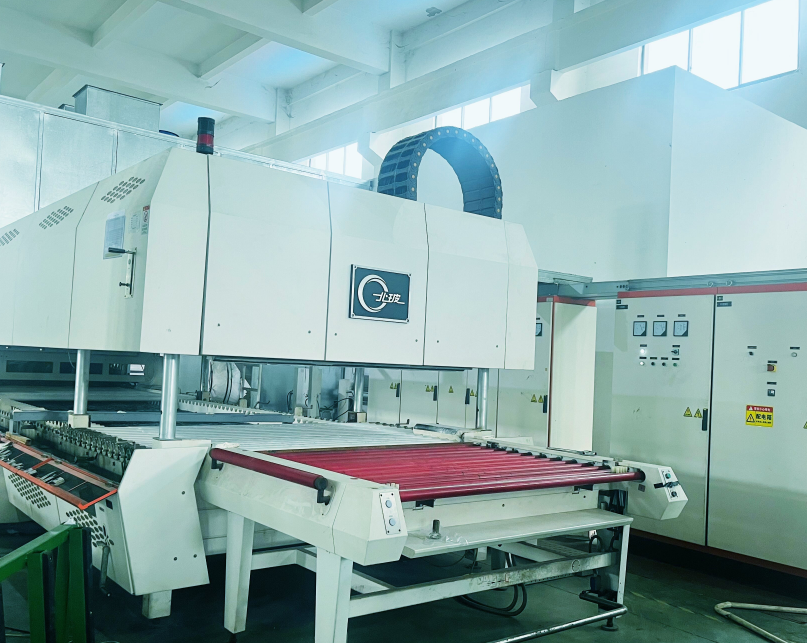

Physical Tempering Furnace
Quantity: 2 Sets
Maximum Size : 1800* 1200mm
Quantity: 2 sets
CS : 450~900Mpa
DOL: 8-45μm
Maximum Size : 1200* 1000mm
Chemical Tempering Furance

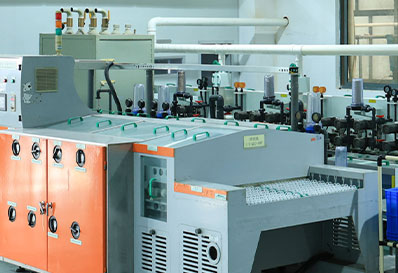

Glass Cleaning Line
Flat sheet Line Quantity: 6 lines
Maximum Width : 1200mm
Quantity: 3 lines
Coating Specification:According to clinets
Maximum Size : 1800* 1200mm

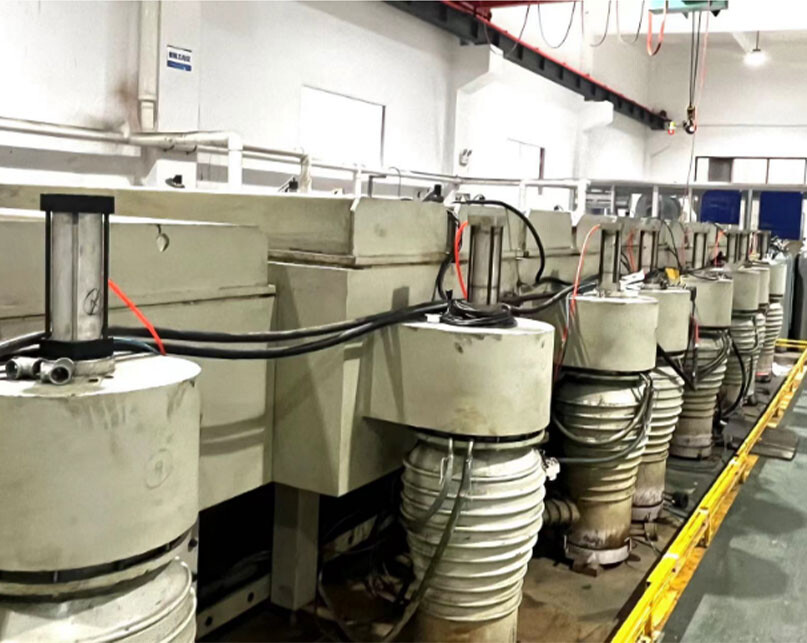

Magnetron Sputtering Coating Line

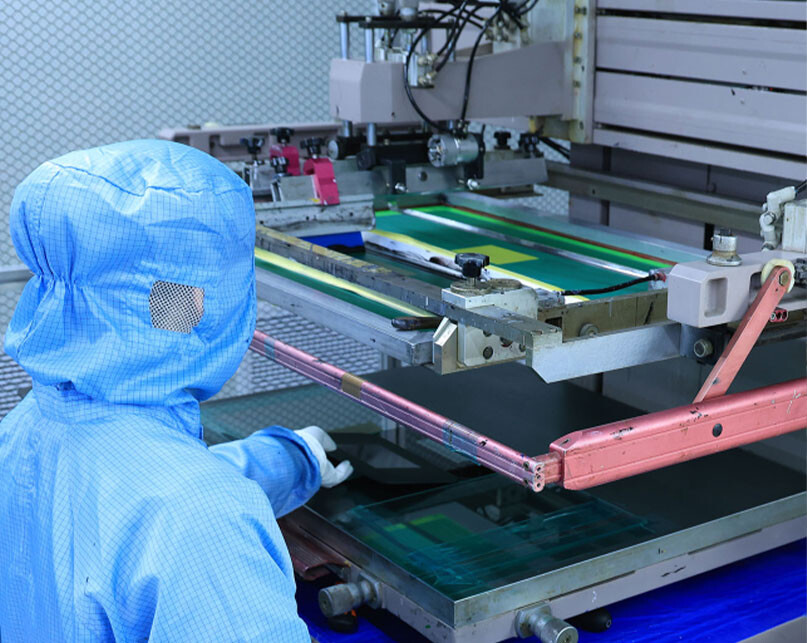

Silk Screen Printing Machine
Printing and Heating: 5 Sets
Semi-Auto Printing line： 12 sets
Auto Printing line： 3 sets
Max size : 85 inch
Clean room Type: Class 1000
Quantity: 2 lines
Capacity: 400Kpcs/ Month
Applicable scope: Al-Si Glass & Soda-lime glass
Process Method: Horizontal Line
Main Parameter: Water Drop Angel ＞110 °
Maximum Width : 700mm
Anti-Finger (AF) Surface Treatment
Surface Stress Tester

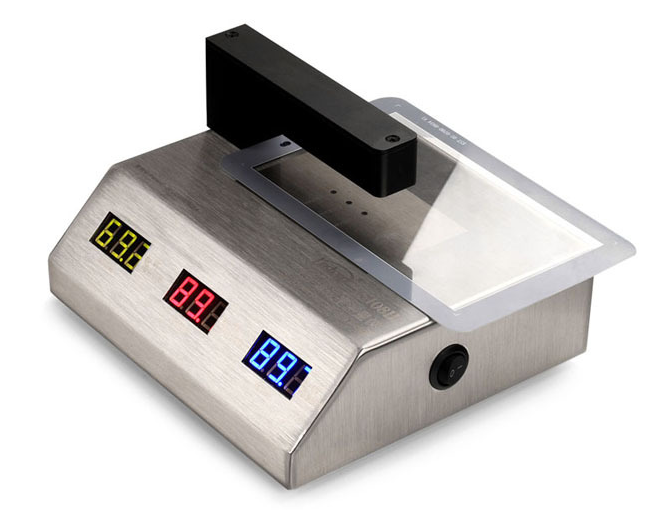

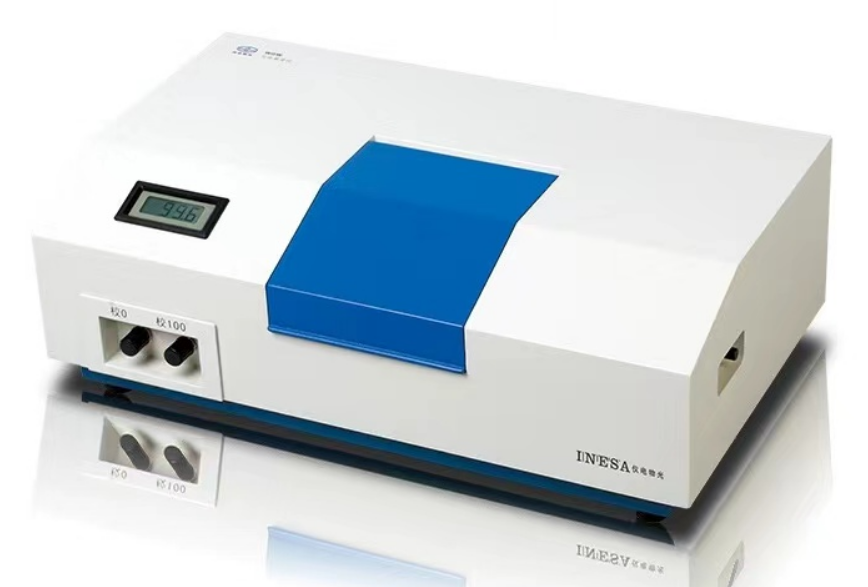

Spectrophotometer

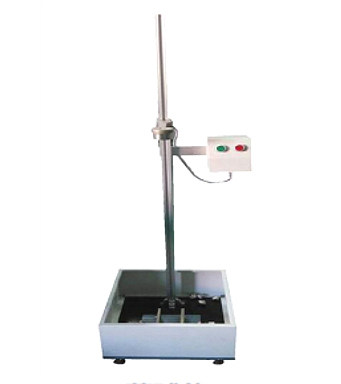

Impact Strenth Tester

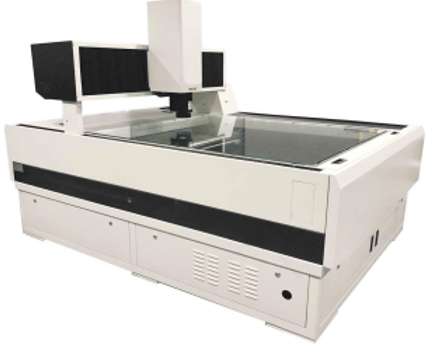

2.5D measuring instrument

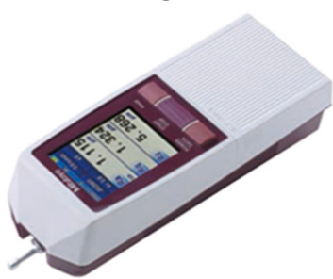

Roughness Tester
Glossmeter

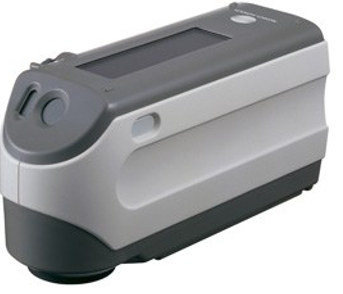

Portable Colorimeter

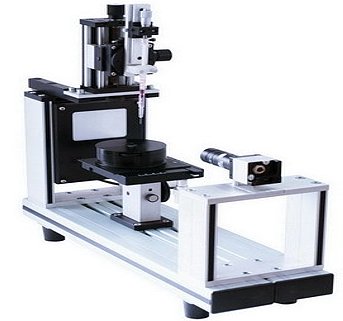

Water Drop Angle Tester

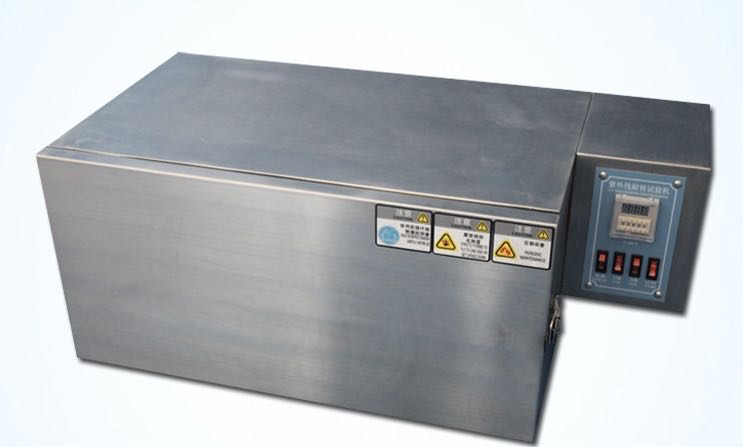

UV -weatherometer

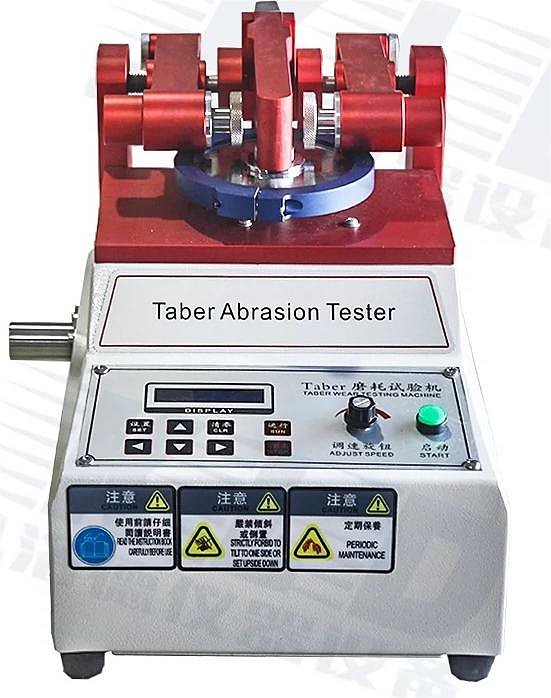

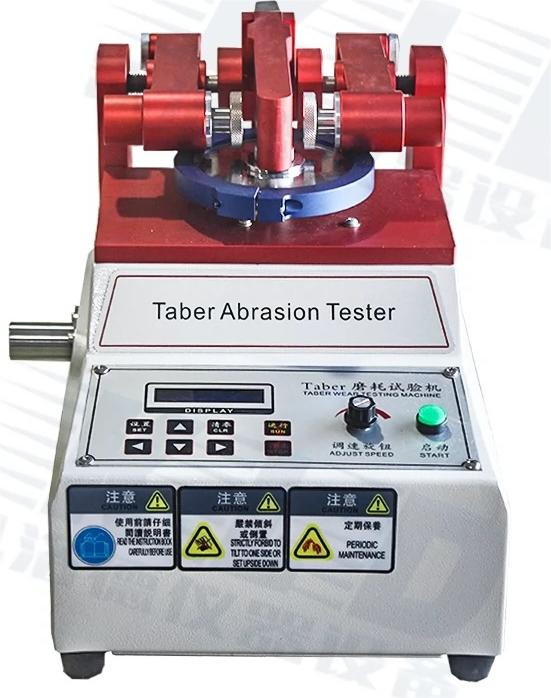

Abrasion tester

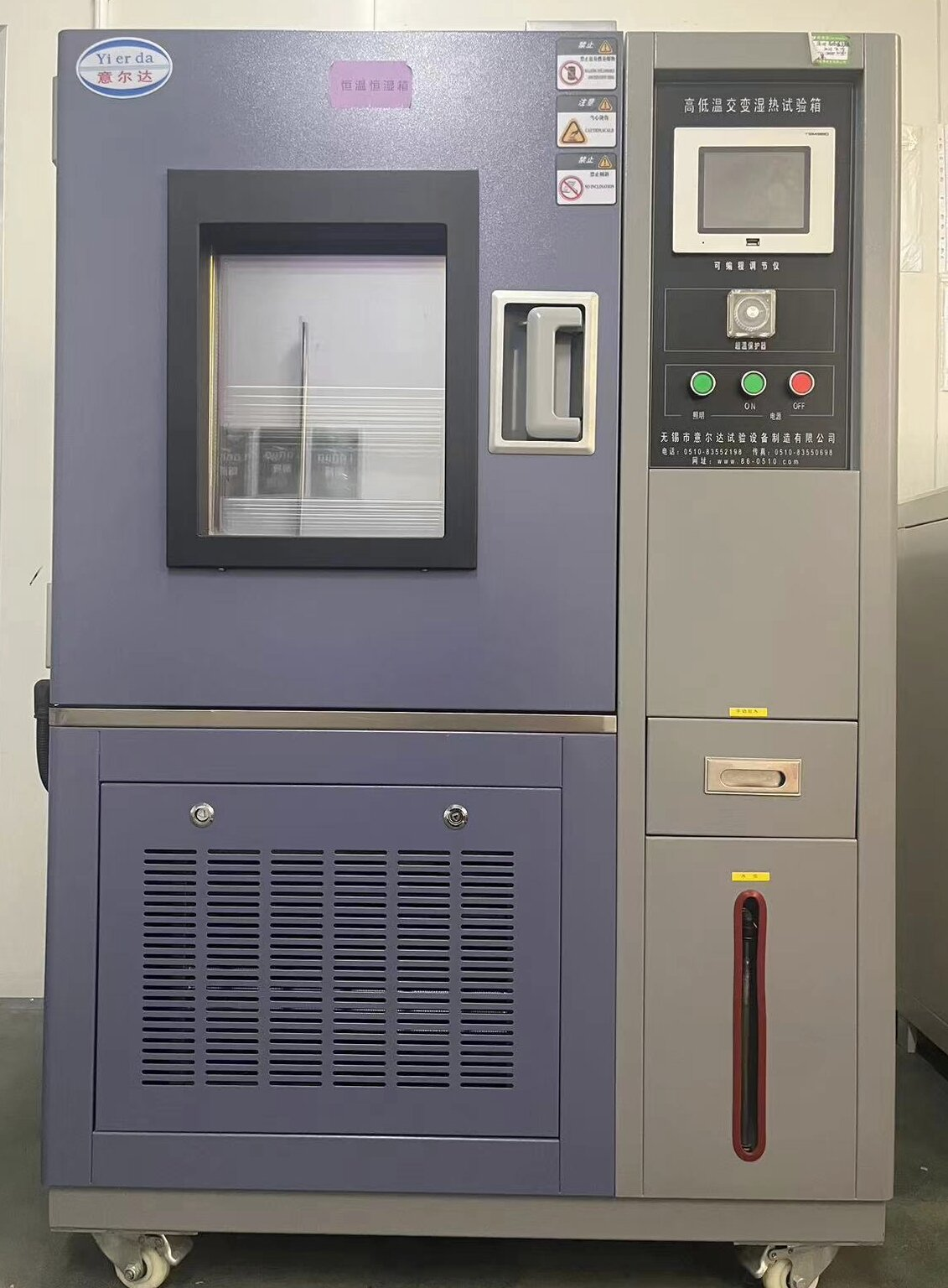

High-Low temperature test chamber

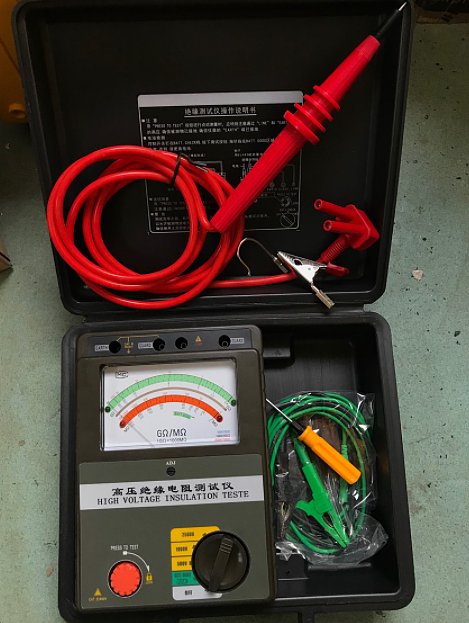

Insulation resistance tester
Fogging Tester

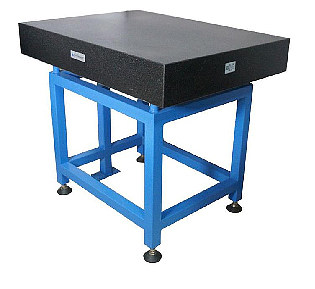

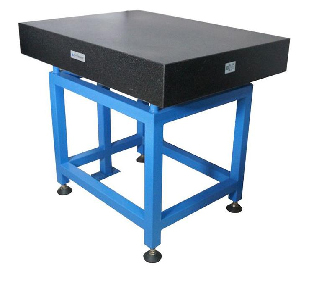

Marble Surface Plate

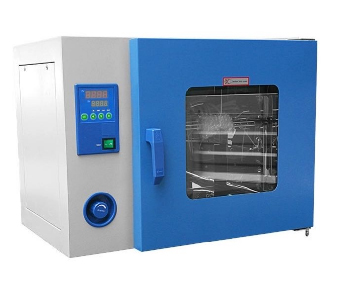

High temperture Heater

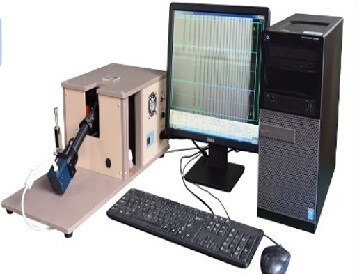

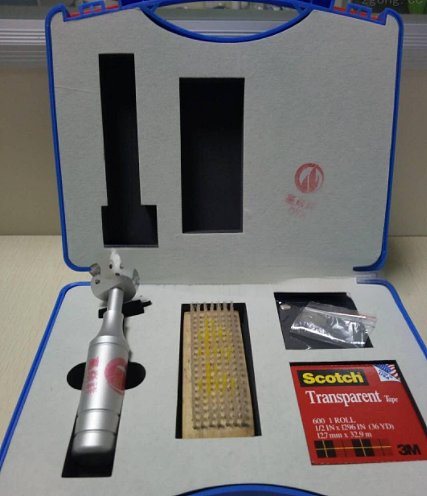

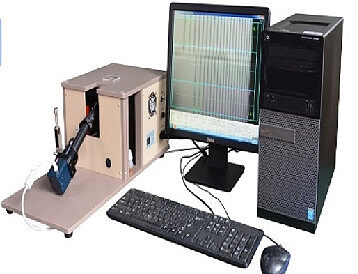

Adhension Scratch Tester
